Mudu Procedure#

1. Design goals#

Mudu Procedure unifies interactive execution and stored procedures into a single, data-local programming model. Goals:

  • Data locality: execute business logic where data lives to minimize cross-worker communication.

  • Developer ergonomics: allow implementing procedures in modern languages and familiar sequential code patterns.

  • Safety and isolation: run user logic in a WASI sandbox and restrict access through explicit syscalls.

  • Performance: enable low-latency, high-concurrency workloads via async runtimes and per-worker affinity.

2. Interactive execution vs stored procedures — and the unified model#

Traditional interactive execution (REPL / client-driven) is immediate and flexible but often incurs remote calls and higher latency. Stored procedures are pre-deployed server-side code that run close to data but are typically constrained to specialized languages and deployment models.

Mudu Procedure unifies both:

  • Same procedure code can be invoked interactively from a client (ad-hoc call) or installed and invoked like a stored procedure.

  • The runtime supports fine-grained syscalls that let procedure code perform database operations without leaving the sandbox.

  • This means developers can prototype interactively, then publish the same code as a deployed procedure that runs with data locality and operational controls.

The following diagrams show the two execution models and how Mudu unifies them into a single WASI-based execution flow.

Interactive invocation (left): the client sends individual queries and commands, with network round-trips for each step.

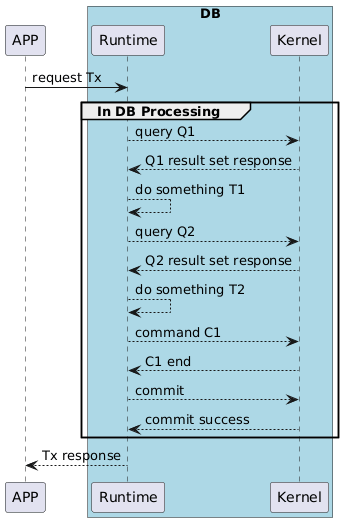

Stored procedure deployment (right): the application sends a single request; all query execution, logic, and commit happen data-local inside the database runtime.

Interactive execution flow — client-driven round trips
Stored procedure deployment — data-local execution

Both converge into a single WASI-based execution flow where procedures call syscalls and the kernel coordinates transaction and routing.

3. WebAssembly / WASI compilation and runtime#

Mudu compiles procedures to WebAssembly (WASI) components and executes them inside a sandboxed runtime.

Why WASI?

  • Portability: WASI modules are platform-neutral and language-agnostic.

  • Sandboxing: the kernel controls syscalls and I/O surface to enforce safety and resource limits.

  • Tooling: many languages can target WASI, enabling multi-language support.

Typical toolchain flow:

  1. Author procedure in a supported language (this guide uses the Rust facade).

  2. Run mtp to generate wrappers and apply the selected sync/async transformation.

  3. Compile the generated source to a WASM component; use the example build tasks to preserve this order.

  4. Deploy the module (put the mpk/package into mpk_path) and register it with the kernel.

  5. Invoke interactively or as stored procedure; the kernel handles syscalls, transactions, and routing.

The runtime exposes a compact syscall set (open session, get/put/range/query/command/batch, etc.). Procedures use these syscalls to interact with database state; all network and storage access is mediated by the kernel.

4. Procedure specification#

A Mudu Procedure is a function marked with the /**mudu-proc**/ marker, which tells the transpiler to expose the following function as a procedure:

/**mudu-proc**/
fn {procedure_name}(
    oid: OID,
    {argument_list...}
) -> RS<{return_value_type}>
  • Procedure name — a valid Rust function name.

  • oid — the current system session ID passed into the procedure.

  • Arguments — each argument must be representable by Mudu’s datum / tuple conversion system. Commonly used forms include scalars such as i32, i64, String, f32, and f64, as well as container forms such as Vec<String>; the exact supported surface is defined by the mudu_type conversion and the transpiler rather than a fixed whitelist.

  • Return value — must be representable by the same conversion system; current implementations support scalar values, tuple return values, and Vec<T> style result containers.

The result alias RS used by procedure code is defined as:

use mudu::error::err::MError;
pub type RS<X> = Result<X, MError>;

Inside a procedure, code interacts with the database through the syscalls: SQL syscalls (mudu_query / mudu_command / mudu_batch) and key/value syscalls (mudu_get / mudu_put / mudu_range).

5. Transactions#

Mudu Procedures support two transaction execution modes.

Automatic mode (current). Each procedure invocation runs as an independent transaction:

  • the transaction commits automatically when the procedure returns Ok;

  • it rolls back automatically when the procedure returns Err.

Manual mode (planned). Passing a shared session oid across multiple procedures for explicit transaction control is a planned capability. The current procedure API exposes no commit / rollback; the pseudocode below is illustrative only:

procedure1(oid);
procedure2(oid);
commit(oid); // explicit commit; or rollback(oid) for explicit rollback

6. Entity mapping#

mudu_query automatically performs R2O (relation-to-object) mapping: it returns an EntitySet<R> whose rows are decoded into the entity type R. R must implement the Entity trait:

pub trait Entity: Datum {
    fn tuple_desc() -> &'static TupleFieldDesc;

    fn table_name() -> &'static str;

    fn from_tuple(row: &TupleField) -> RS<Self>;

    fn from_tuple_value(row: &TupleValue) -> RS<Self>;

    fn to_tuple(&self) -> RS<TupleField>;

    fn to_tuple_value(&self) -> RS<TupleValue>;
}

Entity implementations are normally generated, not hand-written: for each table in sql/ddl.sql, mgen entity generates a Rust module containing:

  • the row struct (e.g. Wallets) implementing Entity, plus TABLE_NAME and columns::* name constants;

  • pre-built SQL text constants SQL_GET_BY_PK, SQL_INSERT, and SQL_DELETE_BY_PK for tables with a primary key, and insert_params() returning the typed bind tuple for SQL_INSERT;

  • a partial-update changeset <Table>Change holding one FieldChange<T> per non-key column: Unchanged (the default) leaves the column out of the update, Set(v) sets it, and for a nullable column Set(None) writes a SQL NULL.

update_by_pk(...) builds the UPDATE ... SET ... WHERE <pk> = ? statement and its bind parameters, and returns None when no column is marked:

let change = WalletsChange {
    balance: FieldChange::Set(Some(200)),
    ..WalletsChange::default()
};
if let Some((sql, params)) = change.update_by_pk(user_id) {
    mudu_command(oid, sql_stmt!(&sql), sql_params!(&params))?;
}

7. Multi-language support#

Unlike many traditional stored-procedure environments that bind to an embedded language (SQL/PLSQL/PLpgSQL), Mudu Procedure supports multiple high-level languages by compiling them to WASM components.

  • Currently supported guest languages: Rust, AssemblyScript, C#, Python, C, and Go. This guide uses the Rust facade, the reference implementation of the procedure API.

  • Future: other languages that can emit WASM components (Zig and more).

This opens the door to leveraging modern language ecosystems, package managers, and developer tools while keeping execution safe and portable.

8. Color-bind async/await: language ergonomics and runtime#

Mudu adopts a “color-bind” model where asynchrony is a runtime feature rather than a mandatory language construct:

  • Developers write sequential, synchronous-looking code for clarity and maintainability.

  • The mudu toolchain (mudu-transpiler / compiler passes) rewrites or transforms blocking syscalls into async-compatible invocations (await points) as part of the build pipeline.

  • This is similar in spirit to Zig’s approach where the runtime can provide an async model while the source code remains simple.

Benefits:

  • Developer experience: write straightforward code without manual async state machines.

  • Runtime efficiency: the generated WASI module cooperates with the host async runtime (io_uring / Tokio) to achieve high concurrency.

The transpiler rewrites syscall calls into async syscall invocations under the hood so that the runtime can yield when waiting for I/O or remote RPCs.

9. Runtime constraints#

Invocation limits are enabled by default and configured in [invocation_limits]: memory, fuel, wall-clock timeout, input/output sizes, host calls, resources and admission concurrency. See Configuration Reference.

Automatic transaction handling describes the hosted invocation path. Native adapter calls follow the selected backend’s transaction semantics; cross-worker distributed atomic commit is not implemented. Do not infer rolling upgrades, session draining, per-procedure capability policies or a complete audit trail from MPK packaging alone.

See SDKs and Execution Modes for choosing hosted versus local execution, and Suspendable Procedure Execution for async-world suspension and per-invocation isolation.

References & examples#

  • See the system call reference for mudu_open, mudu_get, mudu_put, mudu_query, mudu_command, and more.

  • See Filesystem Object Types for fs object DDL and the mudu_fs_* syscalls.

  • See WebAssembly Integration for the component model and WASI sandbox.

  • See Application Packages for how to build and install an .mpk package.

  • See architecture diagrams in the docs (/_static/procedural_tx.png) for visual flow between client, kernel, and worker.

End of Mudu Procedure overview (EN).
